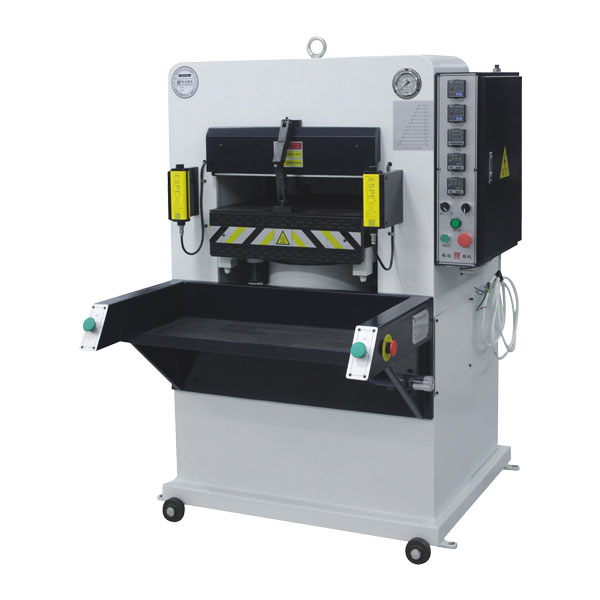

AUTOMATIC PRESSURE KEEPING HYDRAULIC VAMP EMBOSSING MACHINE SERIES
CHARACTERISTICS:
◆The machine dMdes in to the specifications pressure, such as 110tons 130tons
◆The machine install pressure maintaining system, motor will idling running when pressure to the setting value, keep well for motor and pump.
◆The machine can heat up and down at same time, embossing effect more perfect.
◆Frxed automatic feed drawer-model working table, operate more saving labor and easy
◆Pressure adjuslment outset, adjust pressure more easy.
◆install safety device, operate more safe and reassurance.
Description
| Model | ZD-XMHY38110B | ZD-XMHY38130B |
| Dimensions(L*W*H) | 1500×1250×1500（mm） | 1600×1250×1500（mm） |
| Packing size(L*W*H) | 1600×1300×1550（mm） | 1700×1350×1550（mm） |
| Weight | 1200KG | 1300KG |
| Power | 2.2KW | 2.2KW |
| Pressure | 110T | 130T |
| Working table size | 500×400(mm) | 500×600(mm) |
| Voltage | 380V 50HZ / 220V 60HZ | |
| Hydraulic oil | 46#anit-abrade oil | |
Machine appearance, technical performance parameters and characteristics are subject to change without notice.
