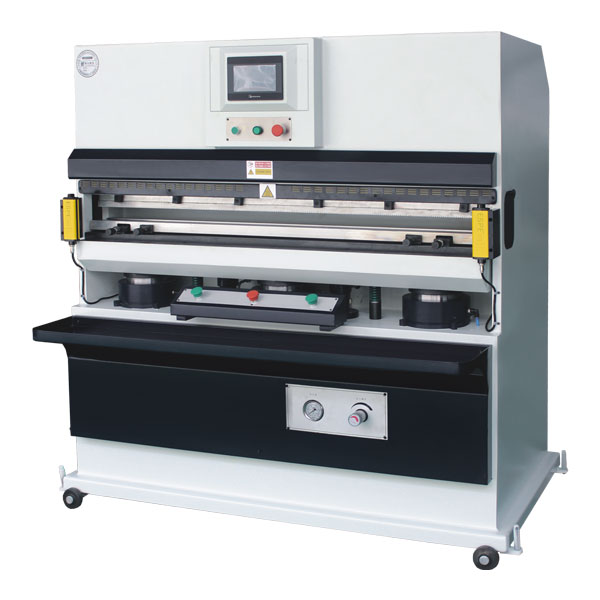

PLC MEMORY HYDRAULIC LEATHER BELT EMBOSSING MACHINE
ZD-PDHY120P
CHARACTERISTICS:
◆The machine is suit for leather belt embossing.
◆Install safety device, operate safe and reassurance.
◆Fixed 5 oil cylinder, pressure range of 0-120 tons.
◆The machine install pressure maintaining system, motor will idling running when pressure to the setting value, keep well for motor and pump.
◆Electric system adopt the control of PLC with operating system with touch screen and graphical, to make the circuit more accurate. Parameter can be memorized.
◆Fixed automatic fault diagnosis system.
Description
| Model | ZD-PDHY120P |
| Dimensions(L*W*H) | 1700×1300×1700（mm） |
| Packing size(L*W*H) | 1800×1400×1800（mm） |
| Weight | 1500KG |
| Power | 2.2KW |
| Pressure | 120T |
| Working table size | 1500×110(mm) |
| Voltage | 380V 50HZ / 220V 60HZ |
| Hydraulic oil | 46#anit-abrade oil |
Machine appearance, technical performance parameters and characteristics are subject to change without notice.
