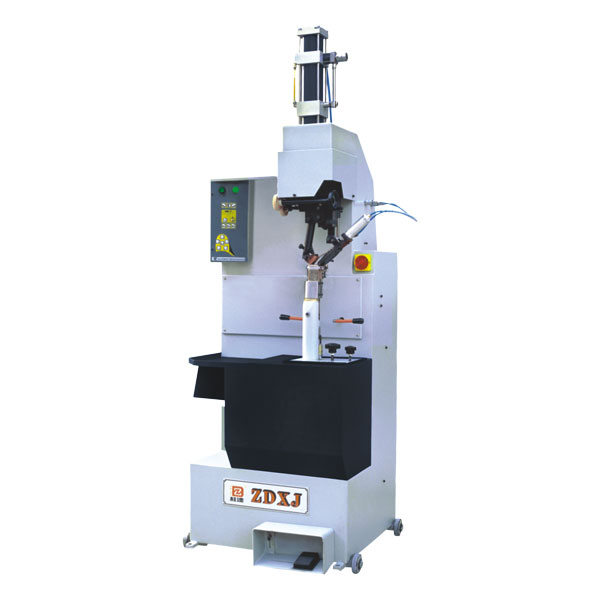

SEMI-AUTOMATIC PNEUMATIC HEEL NAILING MACHINE
ZD-DG585
CHARACTERISTICS
◆ It’s suitable for nailing process of all kind men shoes ,ladies shoes and kids shoes .
◆ Adopting PLC control units and tech imported ,this performance of machine is accurate and efficient.
◆ Mechanical bar hold still the heel firmly ,and never do harm to heels in any height .
◆ External device for previewing nailing depth from the jack- seat , control panel for choose of nailing positions and sequencing. Nail will be drove at a special angle which can enhance the fastness and eliminate the risk of piercing through heel.
Description
| Model | ZD-DG585 |
| Dimensions (LWH) | 800×800×2150（mm） |
| Packing size(LWH) | 900×900×2350（mm） |
| Productivity | 2000Pairs/8Hours |
| Weight | 325Kg |
| Air pressure | 0.6MPa |
| Power | 0.2KW |
| Voltage | 3Phases380V 50HZ / 220V 60HZ/220V 50Hz/ Single phase110V 60Hz |
| Hydraulic oil | 46#(anti-abrade oil) |
Machine appearance, technical performance parameters and characteristics are subject to change without notice.
